CB – CANNIBAL

Product Description

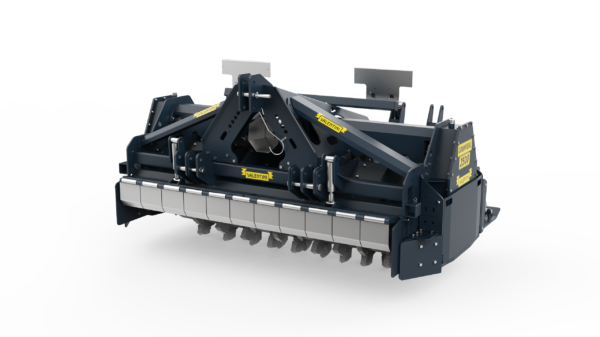

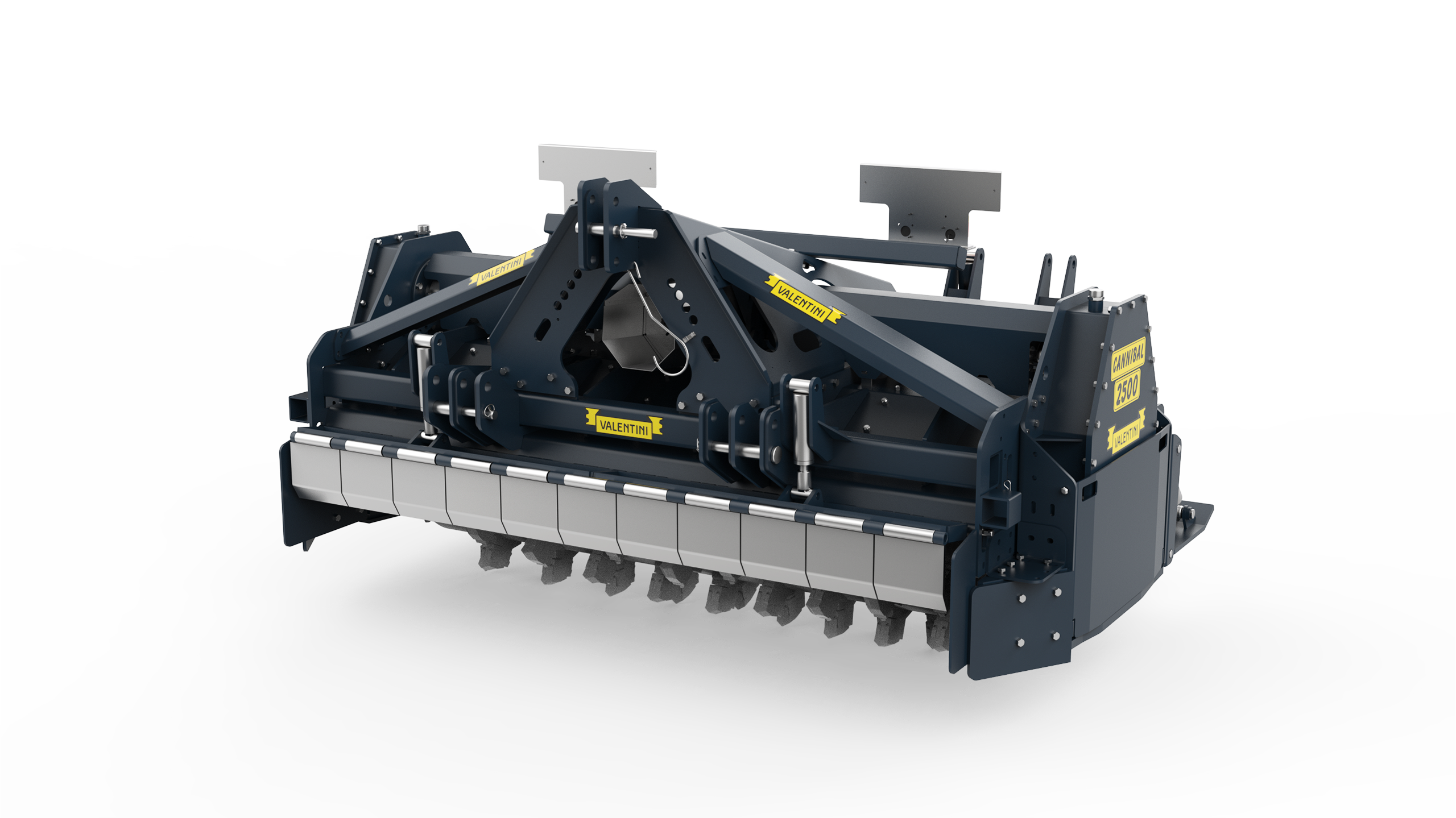

The CANNIBAL forest machine is ideal for farmers,third-party contractors and forestry companies that work mainly in the maintenance of wooded areas that need to carry out professional work even in difficult conditions, having available tractors equipped with variable transmission.. The wide working surface and rotor diameter allow the CANNIBAL to be used to destroy stumps and roots in depth. It can be available in single or double gear transmission version.

Standard Equipment

• 3 point universal hitch (3rd category up to model 2500, 3rd and 4th category from model 2800)
• Single speed unit, 1000 rpm
• Reinforced rotor, 950 diam. with peaks
• Rotor with teeth size 50 in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
• Protection rings on transmission support
• Central cardan with safety bolt (tractor side fork 1 3/4” Z20)
• Double lateral transmission with gears in oil bath “by Valentini-4G”
• Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
• Rear containment sheets for the selection of crushed product that can be adjusted with a HYDRAULIC jack
• Front conveyor adjustable with HYDRAULIC jack
• HYDRAULIC adjustment of sledges for work depth
• Casing protection cap on both sides
• Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
• “By Valentini” friction phasing system

Safety

• CE Safety protections
• Front protective rails
• Anti-intrusion protections for transport
• Parking legs

Tractor equipment notes

• Variable transmission or super gearbox
• Hydraulic distributors requested from 2 to 6
• If necessary, equip the tractor with front ballast

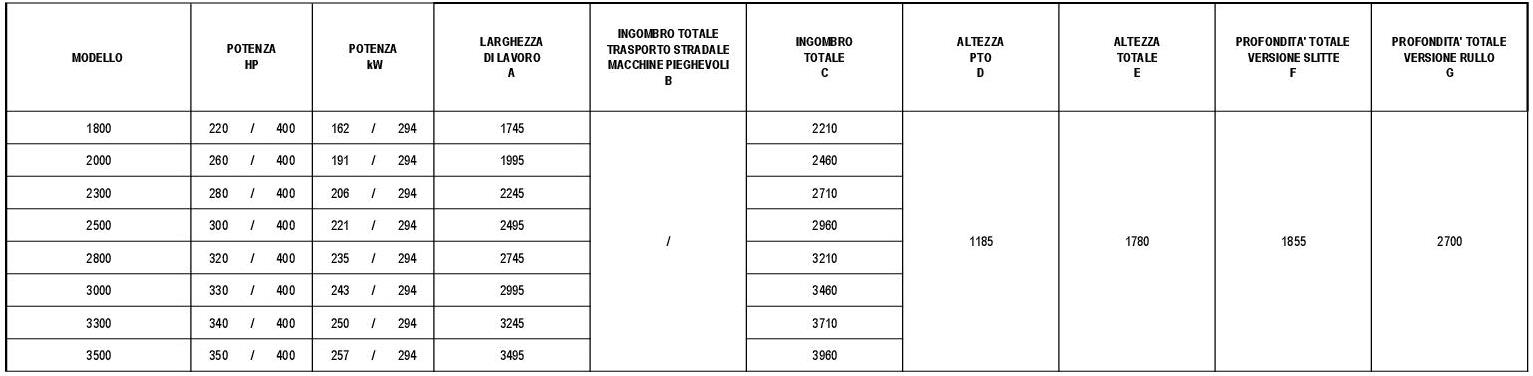

MODEL	POWER HP	POWER kW	WORKING WIDTH	TOTAL FOOTPRINT	N° TEETH	HARD GROUND OR WITH STUMPS WORKING DEPTH* cm	WORKING DEPTH* ROLLING GROUND cm	RPM ROTOR
1500	180/300	132/224	1495	1960	56	27	30	323
1800	220/400	162/298	1745	2210	66	27	50	323
2000	260/400	191/298	1995	2460	76	27	50	323
2300	280/400	206/298	2245	2710	86	27	50	323
2500	300/400	221/298	2495	2960	96	27	50	323
2800	320/400	235/298	2745	3210	106	27	50	323
3000	350/400	257/298	2995	3460	116	27	50	323
3300	380/400	279/298	3245	3710	126	27	50	323
3500	430/400	316/298	3495	3960	136	27	50	323
