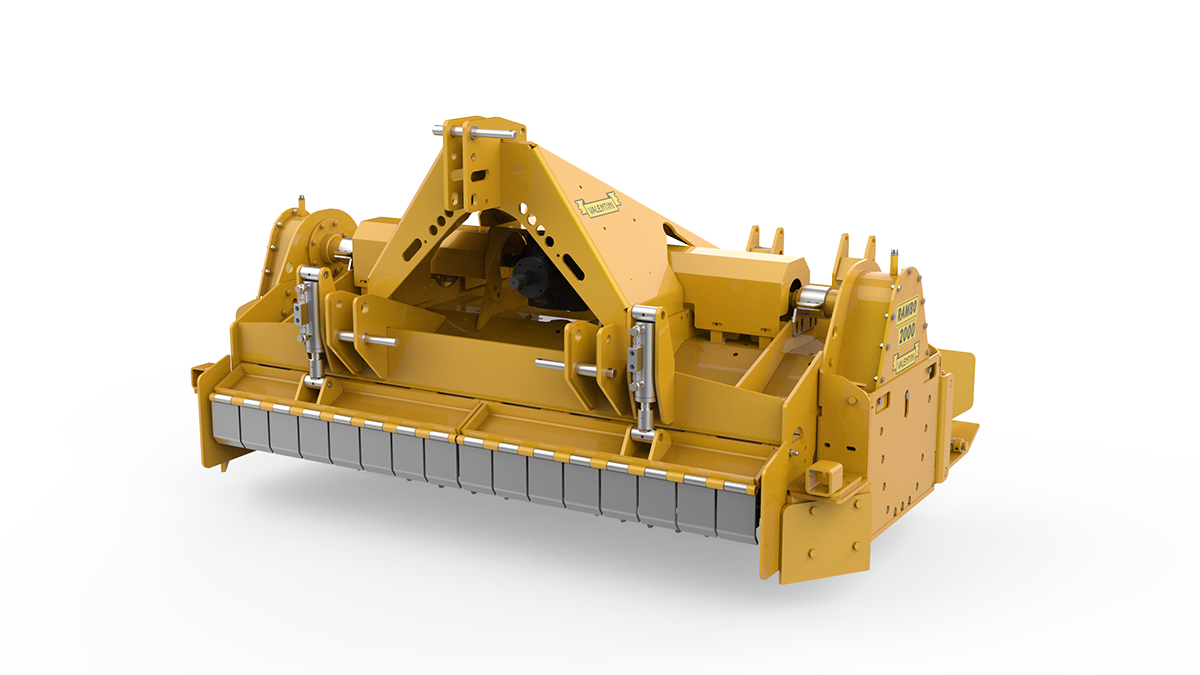

RAMBO-2T-RENDER

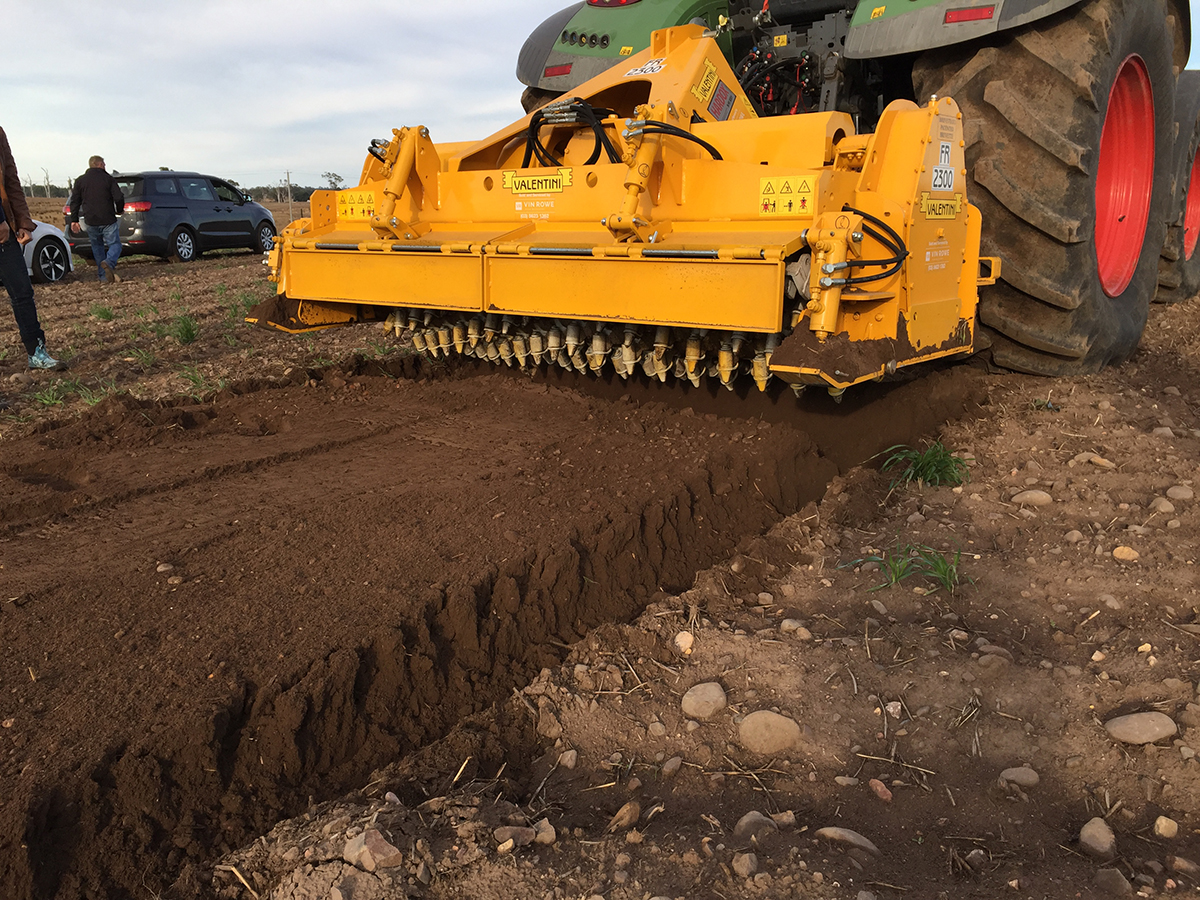

RAMBO-2T-IN-CAMPOpicco25

Product Description

The RAMBO stone crusher 2T is the machine every farmer and contractor should have because it is a multipurpose tool: in agriculture, it transforms rocky terrain into arable land; a field that was initially sterile due to stones can then be used, for example, to plant vineyards, orchards, or traditional crops, significantly increasing its value. The soil worked in this way will be more homogeneous and will facilitate the uniform spread of plant roots, which will be able to grow better also thanks to the mineral salts released by the crushed rocks. Furthermore, rain or irrigation water will distribute more evenly, and soil moisture will be retained for longer. For maintenance work, the RAMBO stone crusher has multiple functions, as it can be used to create or restore rural roads, crush rubble, build firebreaks in forests, destroy stumps, and level ski slopes. It is available in single or dual gear transmission versions.

Standard Equipment

  • 3-point universal hitch (Category 2 and 3)
  • Single speed unit, 1000 rpm
  • Reinforced rotor Ø 636 with peaks
  • Rotor with Ø 25 peaks in “HIGH-STRENGTH AND WEAR-RESISTANT STEEL”
  • Transmission support protection rings
  • Central PTO shaft with safety bolt (tractor side yoke 1” 3/8 Z6)
  • Dual side gear transmission in oil bath “by Valentini-4G”
  • Bearing supports with special seals “Labyrinth Bearing Protection by Valentini”
  • Rear containment sheets and selection grids for crushed product, adjustable with HYDRAULIC jack
  • Front conveyors adjustable with HYDRAULIC jack
  • Skids adjustable with HYDRAULIC jack
  • Protective shroud and outer side skid
  • Protective counter bonnet in “HIGH-STRENGTH AND WEAR-RESISTANT STEEL”
  • Friction timing system “By Valentini”
Safety
  • CE Safety protections
  • Front protective flaps
  • Anti-intrusion protections for transport
  • Parking stands
Tractor equipment notes
  • Variable gearbox
  • Hydraulic distributors required: from 2 to 4
  • If necessary, equip the tractor with front ballast
MODEL POWER HP POWER kW WORKING WIDTH mm TOTAL WIDTH mm NO. OF BITS** WORKING DEPTH ON ROCK BASE* cm WORKING DEPTH ON SOFT GROUND* cm ROTOR rpm WEIGHT* kg
1800 140/230 103/169 1825 2175 154 15 25 259 2720
2000 150/230 110/169 2075 2425 170 15 25 259 3000
2300 160/230 118/169 2325 2675 188 15 25 259 3150

*Approximate **Excluding additional teeth for rotor balancing

TECHNICAL SHEET
