Product Description

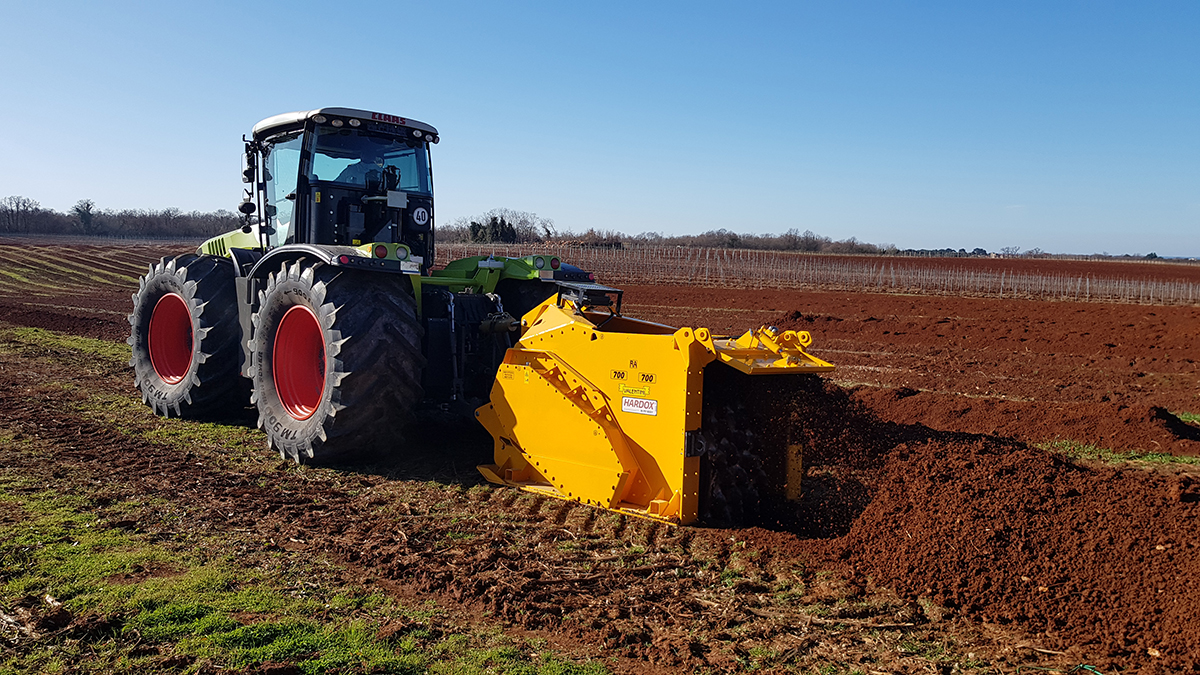

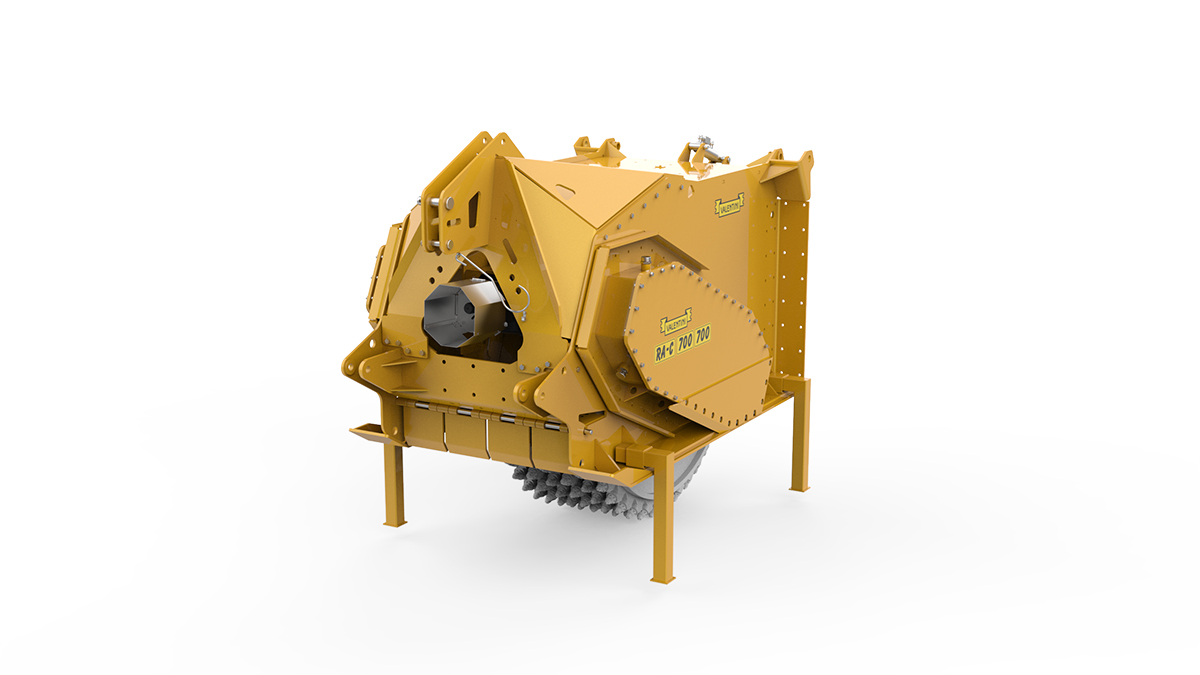

The Trench Wheel RA-C 500-700, a vertical trencher, can be used on all types of soil, in particular rocky soil, to develop trench drains and lay drainage pipes, irrigation pipes, electrical cables, telephone cables and water mains pipes with a maximum diameter of 500 mm. The RA500-700 is linked to a 3rd category 3-point hitch on any type of tractor with  variable-speed drive, and is powered by a power take off at 1000 rpm. The working depth is regulated by the tractor’s hydraulic lifting system. Excavated soil can be expelled on the sides or kept near the excavation for backfilling after tubes have been laid. The RA-C 500-700 is supplied complete with a cardan shaft and safety bolt.

Standard Equipment

  • 3 point universal hitch (Category 3)
  • Single speed unit, 1000 rpm With free wheel
  • Reinforced rotor, 1100 diam. with peaks
  • Rotor with 35 Ø peaks in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
  • Protection rings on transmission support
  • Central cardan with safety bolt (tractor side fork 1 3/4” Z20)
  • Single lateral transmission with gears in oil bath “by Valentini”
  • Double lateral transmission with gears in oil bath “by Valentini” in the 500×700 and 700×700 models
  • Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
  • Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
Safety
  • CE Safety protections
  • Front protective rails
  • Anti-intrusion protections for transport
  • Parking legs
Tractor equipment notes
  • Variable transmission
  • Hydraulic distributors requested from 2 to 4
  • If necessary, equip the tractor with front ballast
MODEL POWER HP POWER kW WORKING WIDTH mm TOTAL FOOTPRINT mm WORKING DEPTH cm* ROTOR rpm TRANSMISSIONS WEIGHT* kg
RA 550X500 300/400 220/296 500 2100 550 168 2 6100
RA 550X600 270/300 200/221 600 1870 550 168 1 5600
RA 700X700 400/450 296/333 700 2100 700 168 2 6800
RA 700X800 400/450 296/333 800 2100 700 168 2 7200

*Apprroximate
