NA – NAVAJO

Product Description

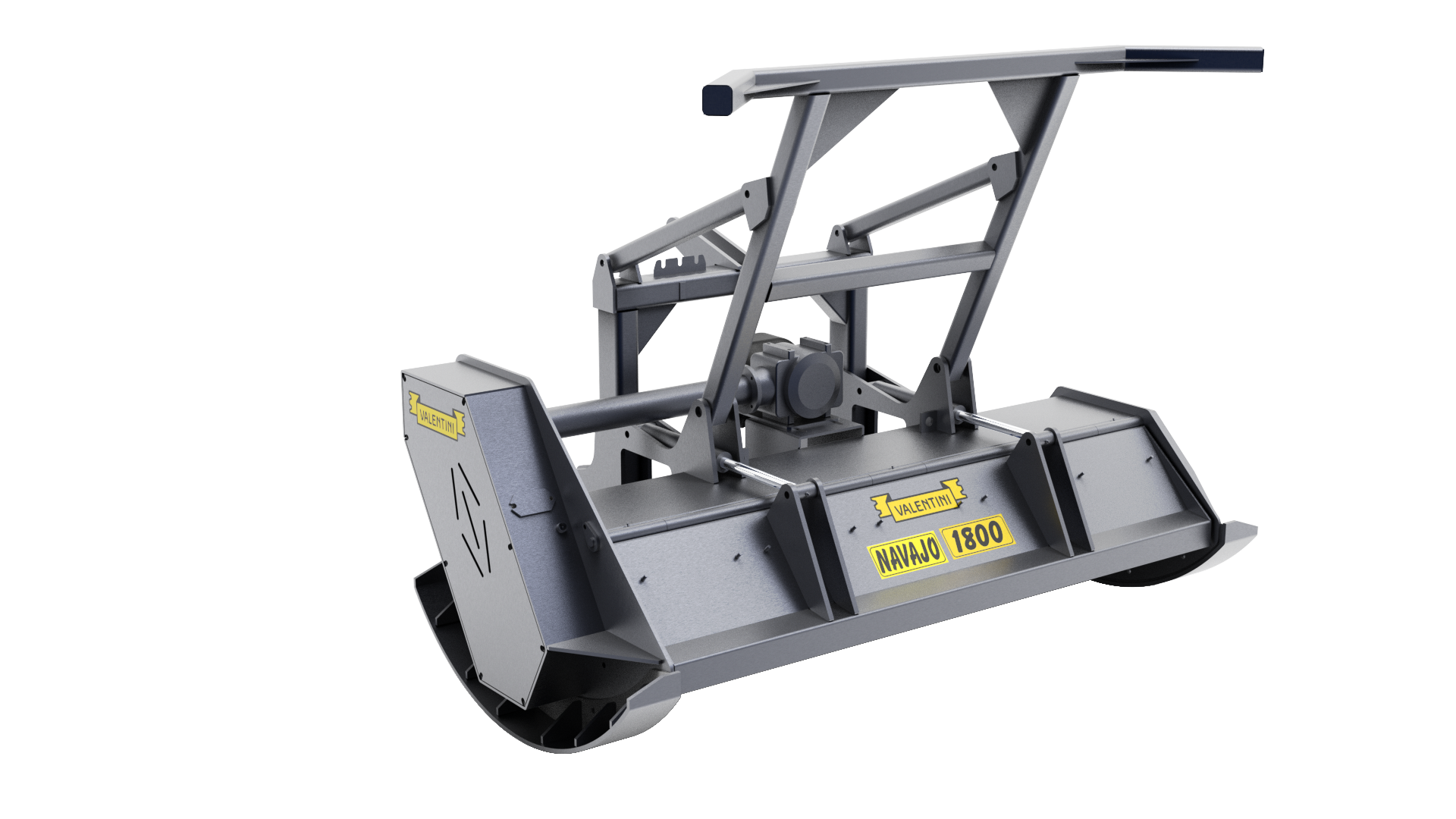

NAVAJO Forestry Mulcher, engineered for challenging land clearing and vegetation control. Equipped with a fixed-tooth rotor, it efficiently shreds branches, bushes, and small trees up to 25 cm in diameter. Perfect for undergrowth cleaning and rough terrain, it delivers consistent grinding and top performance even in tough conditions.

Standard Equipment

• Single speed unit, 1000 rpm
• Rotor with fix tools
• Rear door with hydraulic adjustment
• Strong frame built with very high quality steel (DOMEX 700-SS355)
• Central cardan with safety bolt (tractor side fork 1 3/8” Z6)
• Single lateral transmission with 5 belts

Tractor equipment notes

• Variable transmission or super gearbox reccomended
•  Hydraulic distributors requested from 2 to 4

MODEL	POWER HP	POWER kW	WORKING WIDTH mm	TOTAL WIDTH mm	N° TEETH**	BELTS	WEIGHT* kg
1600	100/120	74/88	1600	1800	33	5	1230
1800	100/120	74/88	1800	2000	39	5	1370
2000	120/150	88/110	2000	2200	45	5	1520
2200	130/150	95/110	2200	2400	51	5	1650

*Approximate — **Fixed reversible tools with dual insert
