Product Description

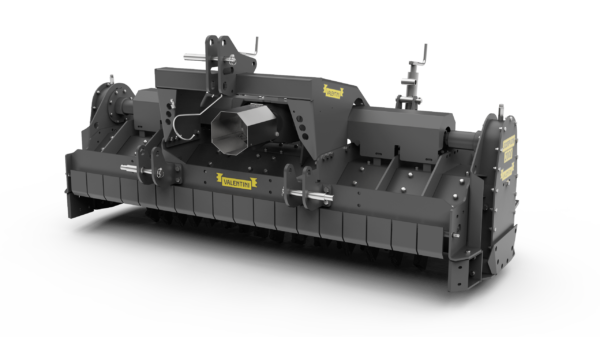

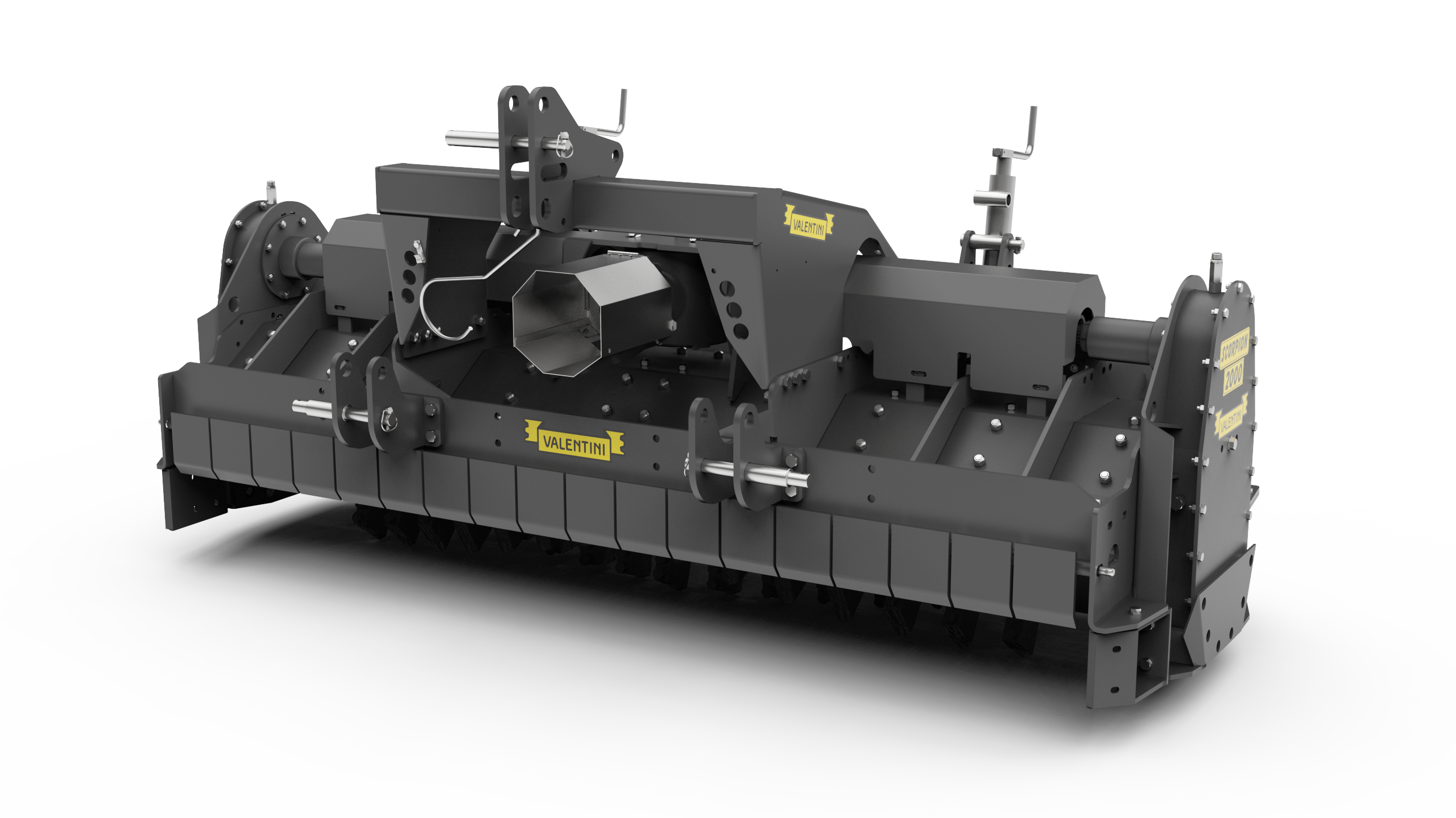

The SCORPION forest machine has been designed to meet the demands of professionals that work for both agricultural and forest maintenance companies. In the agricultural sector, the SCORPION transforms forest land, including land characterised by small-sized stones, into arable land. The land is ploughed to improve consistency and facilitate the even spread of plant roots. Moreover, rainwater and irrigation water is more evenly distributed and soil moisture is maintained over a longer period. In regards to maintenance works, the SCORPION forest machine is commonly used to develop or level rural roads, grind rubble, create fire break paths in forests, grind stumps, prepare parks, trekking itineraries and golf courses. The machine is available with a single or double side transmission with gears.

Standard Equipment

  • 3 point universal hitch (Category 2)
  • Single speed unit, 1000 rpm
  • Reinforced rotor, 500 diam. with peaks
  • Rotor with teeth size 40 in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
  • Transmission support and idle side support protection rings
  • Central cardan with safety bolt (tractor side fork 1 3/8” 6)
  • Double lateral transmission with gears in oil bath
  • Idle side support in oil bath
  • Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
  • Rear containment sheets and selection grids for crushed product that can be adjusted with a mechanical jack
  • Protective shroud casing and sledge on outer side
  • Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
  • “By Valentini” friction phasing system
Safety
  • CE Safety protections
  • Front protective rails
  • Anti-intrusion protections for transport
Tractor equipment notes
  • Variable transmission or super gearbox
  • Hydraulic distributors requested from 2 to 4
MODEL POWER HP POWER kW WORKING WIDTH TOTAL FOOTPRINT N° TEETH HARD GROUND OR WITH STUMPS WORKING DEPTH* cm WORKING DEPTH* ROLLING GROUND cm RPM ROTOR
1800 100/220 74/162 1825 2075 66 7 15 328
2000 120/220 88/162 2075 2325 76 7 15 328
2300 130/220 96/162 2325 2575 86 7 15 328
2500 150/220 110/162 2575 2825 96 7 15 328
2800 170/220 125/162 2825 3075 106 7 15 328
