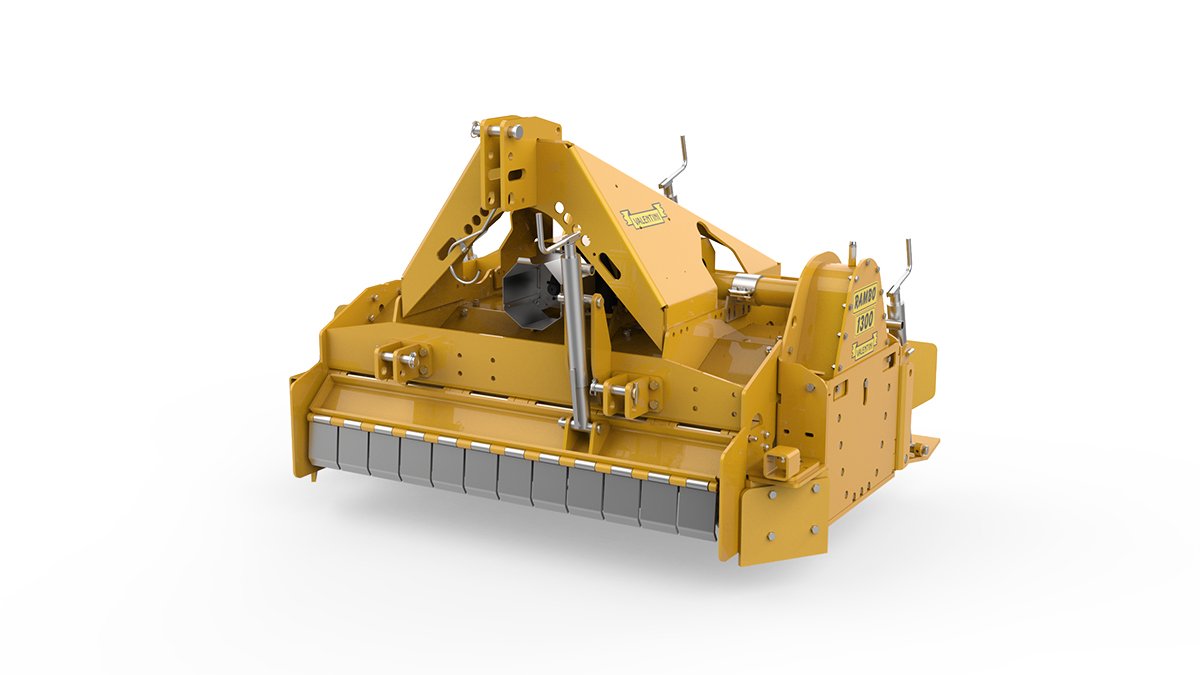

RAMBO-1T-RENDER
RAMBO 1T

Product Description

The RAMBO stone crusher is a must-have machine for every farmer and contractor because it’s a versatile tool. In agriculture, it transforms rocky terrain into cultivable land. A field initially barren due to stones can then be used, for example, to plant vineyards, orchards, or traditional crops, significantly increasing its value. The soil processed this way will be more homogeneous, facilitating the uniform spread of plant roots, which can grow better thanks to the mineral salts released by the crushed rocks. Furthermore, rain or irrigation water will distribute more evenly, and soil moisture will be retained longer. For maintenance work, the RAMBO stone crusher has multiple functions, as it can be used to create or reclaim rural roads, crush rubble, build firebreaks in forests, destroy tree stumps, and level ski slopes. It’s available in single or dual gear transmission versions.

Standard Equipment

  • 3 point universal hitch (Category 2 and 3)
  • Single speed unit, 540 rpm
  • Reinforced rotor, 636 Ø with peaks
  • Rotor with 25 Ø peaks in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
  • Transmission support and idle side support protection rings
  • Central cardan with safety bolt (tractor side fork 1 3/8” Z6)
  • Single lateral transmission with gears in oil bath “by Valentini-4G”
  • Idle side support in oil bath
  • Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
  • Rear containment sheets and selection grids for crushed product that can be adjusted with a MECHANICAL jack
  • Front conveyor adjustable with MECHANICAL jack
  • Sledges adjustable with MECHANICAL jack
  • Protective shroud casing and sledge on outer side
  • Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
Safety
  • CE Safety protections
  • Front protective rails
  • Anti-intrusion protections for transport
  • Parking legs
Tractor equipment notes
  • Variable transmission
  • Hydraulic distributors requested from 2 to 4
  • If necessary, equip the tractor with front ballast
MODEL POWER HP POWER kW WORKING WIDTH mm TOTAL FOOTPRINT mm BITS** WORKING DEPTH ON ROCK BANK* cm WORKING DEPTH ON SOFT GROUND* cm ROTOR rev/min WEIGHT* kg
1000 110/150 81/110 1075 1425 88 15 25 236 1780
1300 120/150 89/110 1325 1675 112 15 25 236 1900
1500 130/150 96/110 1575 1925 133 15 25 236 2100

*Approximate **Net additional teeth to balance the rotor
