RA 1200-1500
Product Description

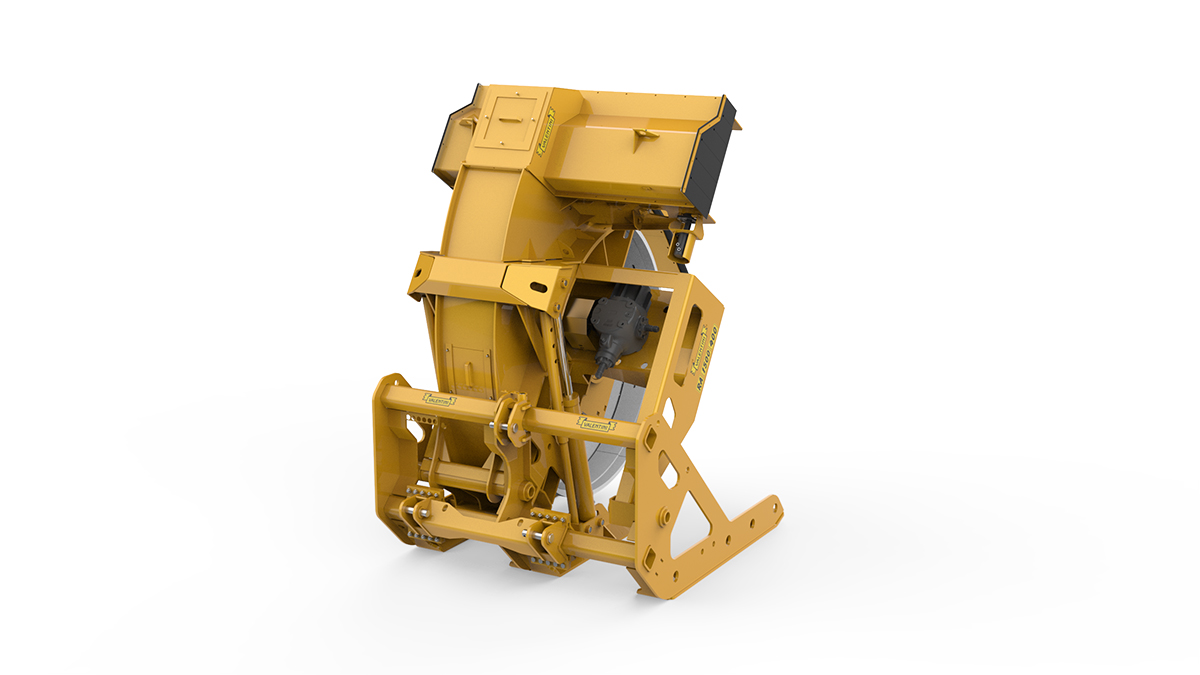

The Valentini RA1200-1500 Vertical Trencher is the ideal solution for deep and precise trenching across all soil types, especially rocky terrain. Perfect for laying drainage systems, irrigation lines, and utility cables, it handles pipes with a diameter up to 500 mm. With high working depth, excellent soil discharge, and maximum stability, the RA1100-1500 ensures professional, efficient, and uniform trenching results.Standard Equipment
- 3 point universal hitch (Category 3 and 4)
- Single speed unit, 1000 rpm
- Reinforced rotor, 2260 diam.
- Rotor with 25 Ø bits in “HIGHRESISTANCE AND WEAR RESISTANT STEEL” up to model 1200
- Rotor with 35 Ø bits in “HIGHRESISTANCE AND WEAR RESISTANT STEEL” from mod. 1500
- Protection rings on transmission support
- Central cardan with safety bolt (tractor side fork 1 3/4” Z20)
- Single lateral transmission with gears in oil bath “by Valentini”
- Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
- Protective counter bonnet in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
- CE Safety protections
- Anti-intrusion protections for transport
- Variable transmission
- Hydraulic distributors requested from 2 to 4
- If necessary, equip the tractor front ballast
| MODEL | POWER HP | POWER kW | WORKING WIDTH mm | TOTAL WIDTH mm | WORKING DEPTH cm* | ROTOR rpm | N° of BITS** | WEIGHT* |
| RA 1200×400 | 280/320 | 208/237 | 400 | 2300 | 115 | 152 | 148 | 6700 |
| RA 1500×400 | 350/400 | 259/296 | 400 | 2300 | 145 | 152 | 100/76*** | 7900 |
| RA 1500×500 | 380/450 | 281/333 | 550 | 2300 | 145 | 152 | 150/98*** | 8500 |
*Approximate **Net additional teeth to balance the rotor ***The figure varies according to rotor design
TECHNICAL SHEET
