FA-M-S2 – ATTILA-S2

Product Description

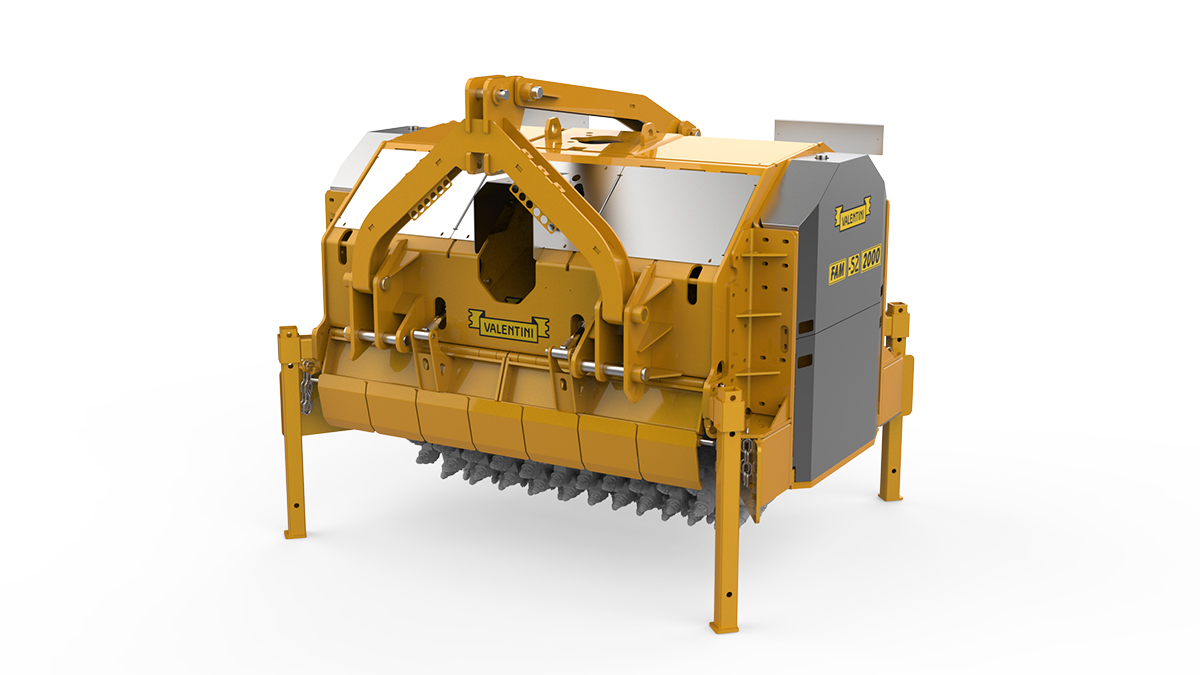

The ATTILA-M-S2 Stone Crusher is the perfect machine not only for farmers, but also for companies that work in the road maintenance sector, carrying out professional works in difficult conditions, using high-powered tractors equipped with a “variable” speed drive. In the agricultural sector , the ATTILA-M transforms particularly rocky soil into arable land, as it crushes rocks and stones up to a depth of 70 cm, above all thanks to the side transmission “by Valentini 6G”. Initially sterile land characterised by rocky soil can subsequently be used to erect vineyards, orchards or to grow more traditional crops, thus significantly improving its value. The land is ploughed to improve consistency and facilitate the even spread of plant roots, which also grow more efficiently thanks to the mineral salts released by the crushed stones. Moreover, rainwater and irrigation water is more evenly absorbed and soil moisture is maintained over a longer period. For maintenance works, the ATTILA-M-S2 stone crusher is commonly used to both develop and level rural roads, as well as to grind rubble. This model is supplied standard with double side transmission with gears.

Standard Equipment

• 3 point universal hitch (Category 4H N and 4H)
• Single speed unit, 1000 rpm
• Reinforced rotor, 1185 Ø with bits
• Rotor with 35 Ø bits in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
• Protection rings on transmission support
• Central cardan with safety bolt (tractor side fork 1 3/4” Z20)
• Double lateral transmission with gears in oil bath “by Valentini-6G”
• Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
• Rear containment sheets and selection grids for crushed product that can be adjusted with a HYDRAULIC jack
• Front conveyor adjustable with HYDRAULIC jack
• Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”
• “By Valentini” friction phasing system

Safety

• CE Safety protections
• Front protective rails
• Anti-intrusion protections for transport
• Parking legs

Tractor equipment notes

• Variable transmission
• Hydraulic distributors requested from 2 to 6
• If necessary, equip the tractor with front ballast

MODEL	POWER HP	POWER kW	WORKING WIDTH mm	TOTAL WIDTH mm	NO. PICKS**	WORKING DEPTH ON ROCK BASE cm*	WORKING DEPTH IN SOFT SOIL cm*	ROTOR rpm	WEIGHT* kg
1800	350/450	261/330	1770	2280	247	40	70	190	7500
2000	400/450	298/330	1995	2505	269	40	70	190	8050
2300	450/450	330/330	2300	2810	304	40	70	190	8850

*Approximate – **Excluding extra balancing teeth on rotor
