Product Description

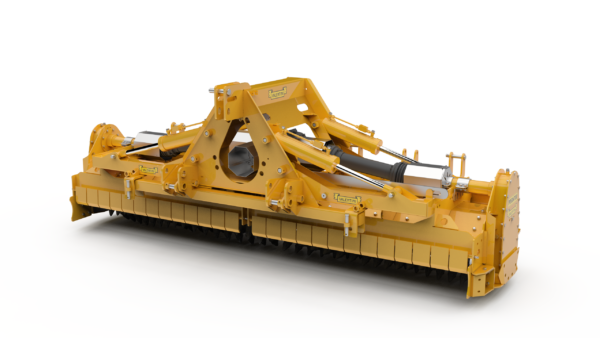

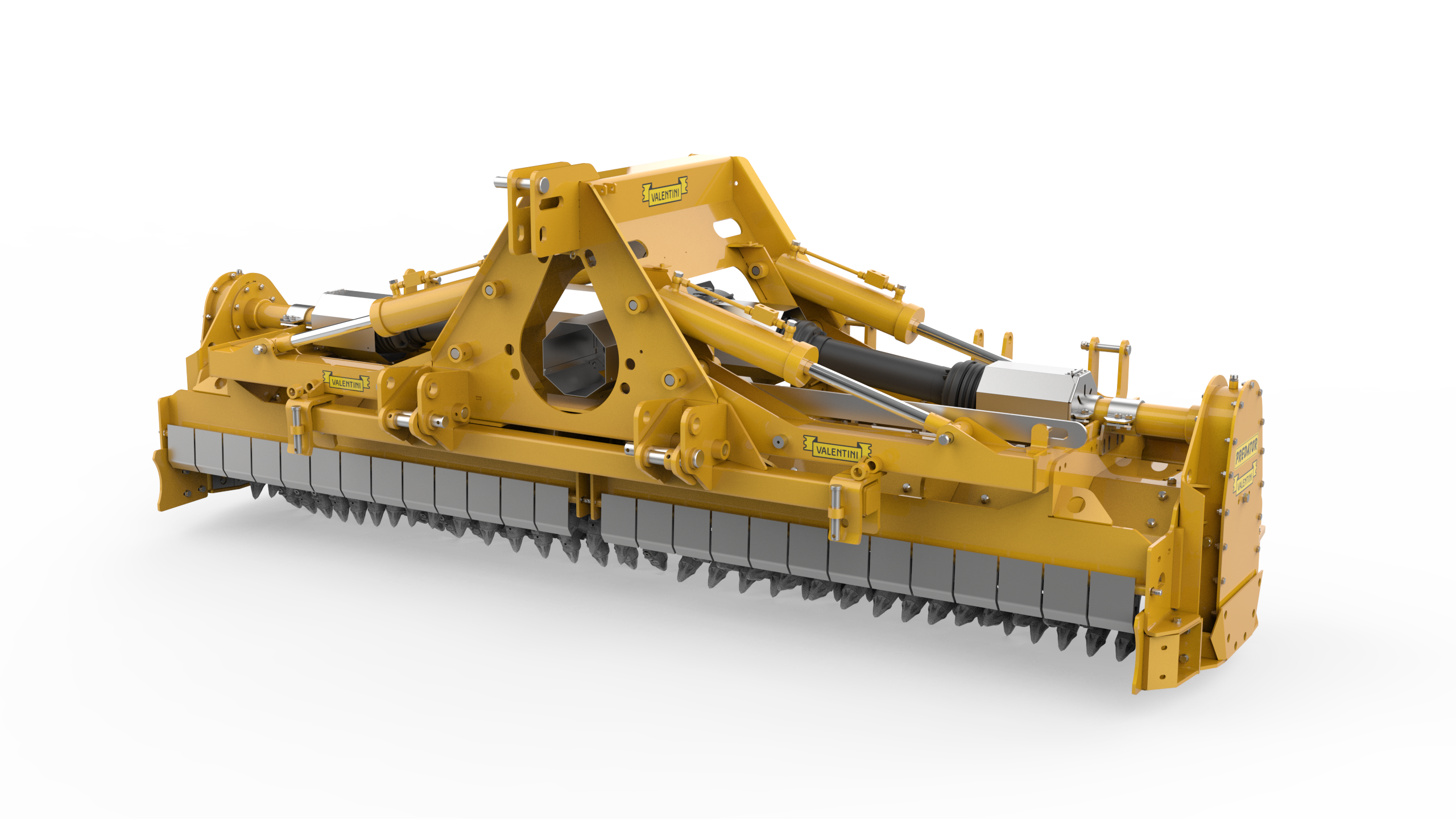

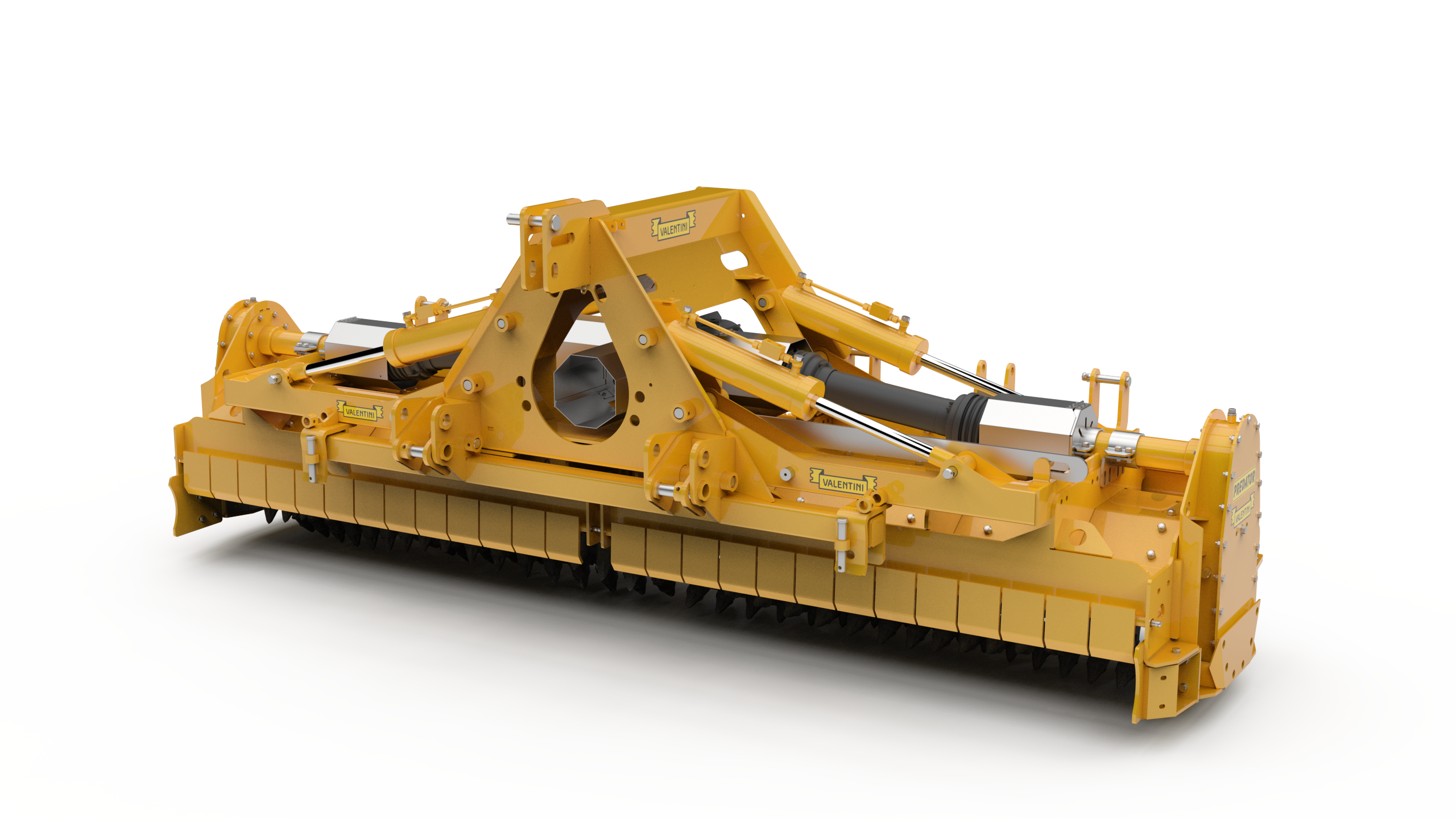

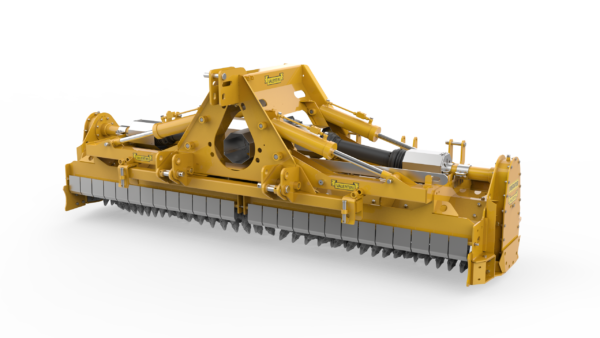

The PREDATOR folding stone crusher has been designed to meet the demands of professional farmers. In the agricultural sector, the PREDATOR prepares rocky soil for cultivation. The land is ploughed to improve consistency and facilitate the even spread of plant roots, which also grow more efficiently thanks to the mineral salts released by the crushed stones. Moreover, rainwater and irrigation water is more evenly distributed and soil moisture is maintained over a longer period. The advantage of the folding machine is that once its parts have been closed, it can be transported by road in compliance with current regulations.

Standard Equipment

  • 3 point universal hitch (Category 3)
  • Front oscillating bar hitch
  • Single speed unit, 1000 rpm
  • Reinforced rotor, 485 diam. with peaks
  • Rotor with 25 Ø peaks in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
  • Idle side support in oil bath
  • Transmission support and idle side support protection rings
  • Central fixed cardan (tractor side fork 1 3/4” Z20)
  • Side cardan with safety cam
  • Hydraulic opening and closing of the bodies with 4 jacks and controlled block valves
  • Lateral transmission with “OVERSIZE” gears in oil bath
  • Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”
  • Rear containment sheets and selection grids  for crushed product that can be adjusted with a mechanical jack
  • Protective counter bonnet in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”
  • Adjustable rear sheets with “Fast Regulation” shock absorbers
In roller versions
  • Hydraulic jacks for depth adjustment
  • Larger roller parallel to the transmission
  • Casing protection cap
Safety
  • Rear light bar for road travel
  • Manual safety bar for transport
  • CE Safety protections
  • Anti-intrusion protections for transport
  • Road footprint 2470
Tractor equipment notes
  • Variable transmission or super gearbox
  • Hydraulic distributors requested from 2 to 4
  • If necessary, equip the tractor front ballast

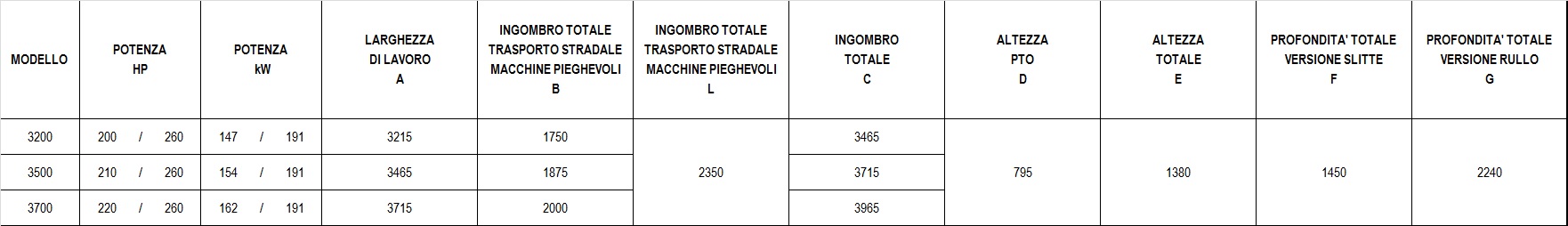

MODEL POWER HP POWER kW WORKING WIDTH TOTAL FOOTPRINT N° HOES WORKING DEPTH* ON ROCK BANK cm WORKING DEPTH* ROLLING GROUND cm RPM ROTOR
3200 200/260 147/191 3214 3464 318 7 15 253
3500 210/260 154/191 3465 3715 335 7 15 253
3700 220/260 162/191 3714 3964 372 7 15 253
SKU: a6aa6311334d Categories: ,

We are at your disposal for information, catalogs and assistance
